Description
Package contents:
- 100x HECO MULTI MONTI plus SS Screw Anchors 7.5x40mm
Product description:

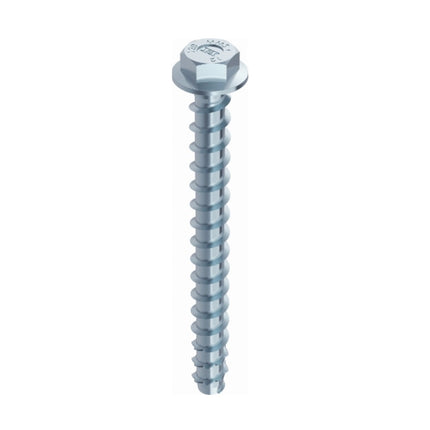

The MULTI MONTI plus screw anchor from the manufacturer Heco is an enhancement of the concrete screw MULTI-MONTI. A great advantage of this screw is that, without the need for wall plugs, the certified screw anchor is driven directly into a pre-drilled hole, where it is immediately loadable. Its reinforced toothed concrete thread cuts an internal thread into the building material while screwing. This creates a positive locking connection, which is subsequently used for the anchoring. The MULTI-MONTI-plus system is not only fast and easy to mount, but also ensures a secure connection. The screws can be mounted close to the edge and without a torque wrench, what´s more they can be removed and reused after checking the threads condition. Heco is one of the leading screw manufacturers, characterized by excellent manufacturing quality and a long tradition.
Technical specifications:
Manufacturer: HECO
Manufacturer Number: 48389
Manufacturer's Designation: MULTI MONTI plus SS

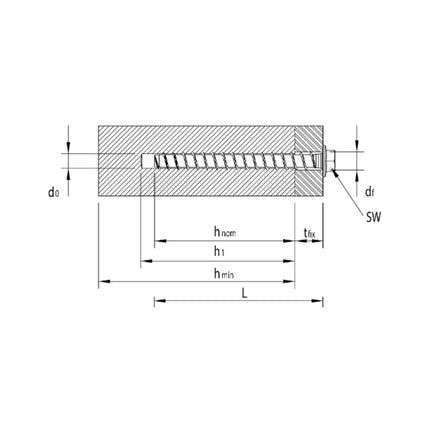

Clamping Strength, tfix1: 5mm
Size of Recess: SW-10
Drill Diameter, d0: 6.0mm
Drill Hole Depth, h1: 40mm
Diameter of Clearance Hole in the Fixture, df: 9mm
Embedment Depth, hnom1: 35mm
Thread Length, lg: 37mm
Head Diameter, dk: 14mm
Max. Recommended Power Output of the Impact Screw Driver, Tmax1: 120Nm
Thickness of Concrete Member, hmin: 100mm
Minimum Edge Distance, cmin: 30mm
Diameter, d: 7.5mm
Length, l: 40mm
Head Form: Hexagonal Head with Combined Washer
Recess: Hexagonal Head
Surface: Zinc Plated Blue, A2K
Material: Carbon Steel
European Technical Assessment: ETA-15/0785
Fire-Resistance Rating: F120/R120
Approval for Sprinkler Systems: Yes
German DIBt-Approval: Z-21.1-2103, Z-21.8-2061
