Description

Package contents:

- 400x HECO MULTI MONTI plus F Screw Anchor 5.0 x 60mm

Product description:

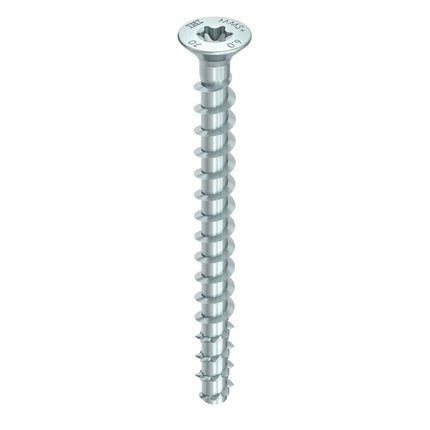

Heco presents the MULTI MONTI plus anchor screw, an enhanced version of the MULTI MONTI concrete screw. A great advantage of this screw is that, without the need for wall plugs, the certified screw anchor is driven directly into a pre-drilled hole, where it is immediately loadable. On screwing in, the reinforced toothing at the tip of the screw cuts an internal thread into the building material. This produces a positive fit, which is then used for anchoring. The MULTI-MONTI-plus system is not only fast and easy to mount, but also ensures a secure connection. The screws can be mounted close to the edge and without a torque wrench, what´s more they can be removed and reused after checking the threads condition.

Technical specifications:

Manufacturer: HECO
Manufacturer's number: 54267
Manufacturer designation: MULTI MONTI plus F

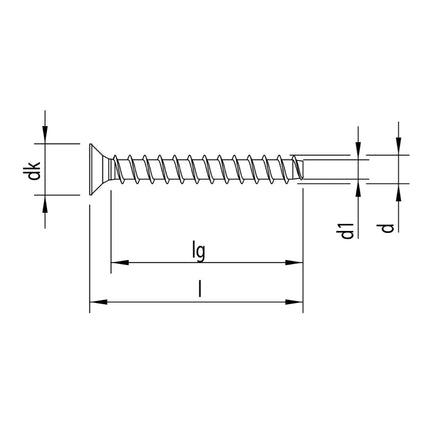

Clamping strength, tfix standard: 25mm
Size of recess : T25
Drill diameter, d0: 4.0mm
Drill hole depth, h standard: 40mm
Embedment, hnom standard: 35mm
Thread length, lg: 55mm
Head diameter, dk: 8.7mm
Diameter, d: 5.0mm
Length, l: 60mm
Head form: Countersunk Head

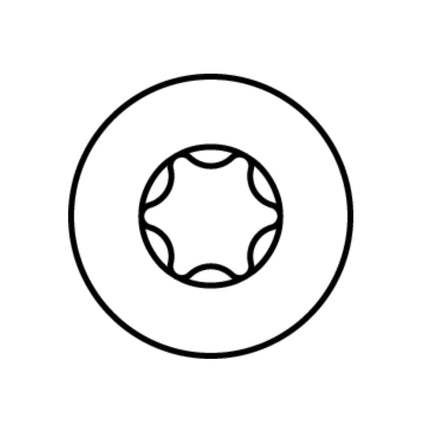

Recess: T-Drive
Material: Carbon Steel
Surface: Blue Galvanized, A2K

Specifications

• Hersteller: HECO
• Gewicht: 2380 g
• Schrauben-Ø: 5 mm
• Länge: 60 mm
• Anzahl: 400 Stück
• Bearbeitbares Material: Beton
• Schraubengewinde: Vollgewinde
• Schraubenkopf: Senkkopf
