Description

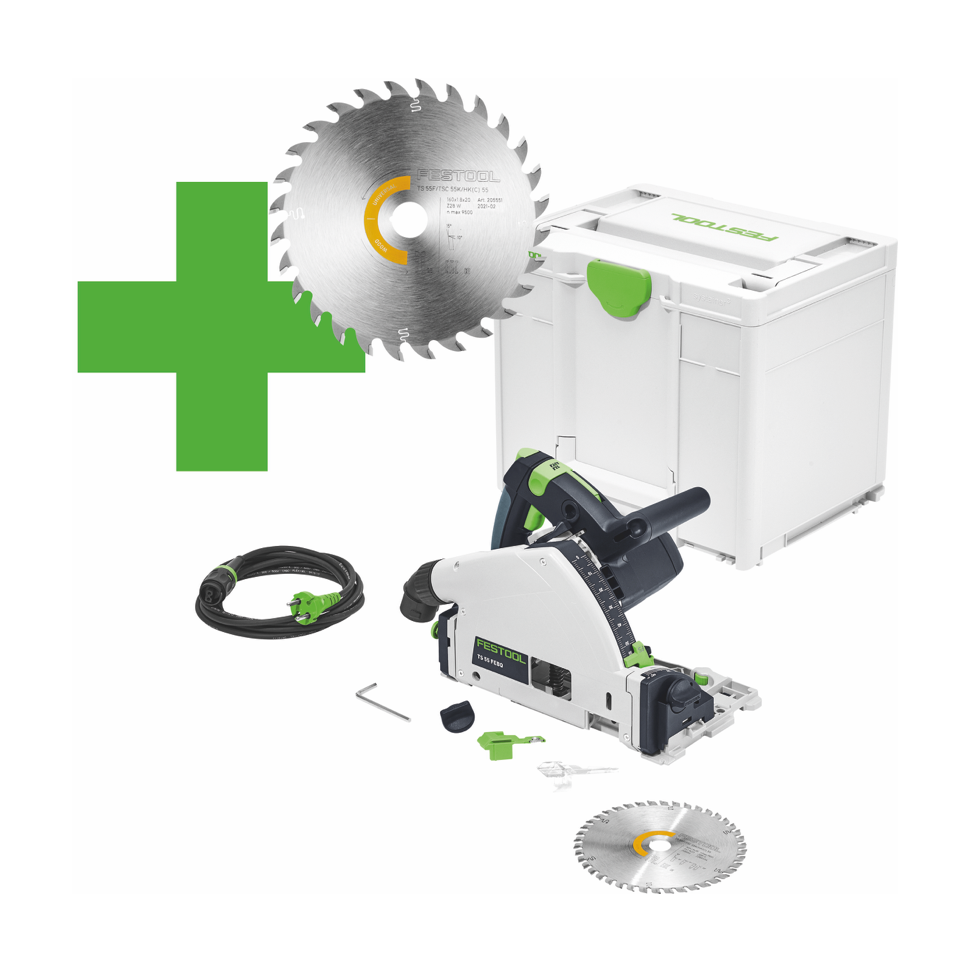

Scope of Delivery:

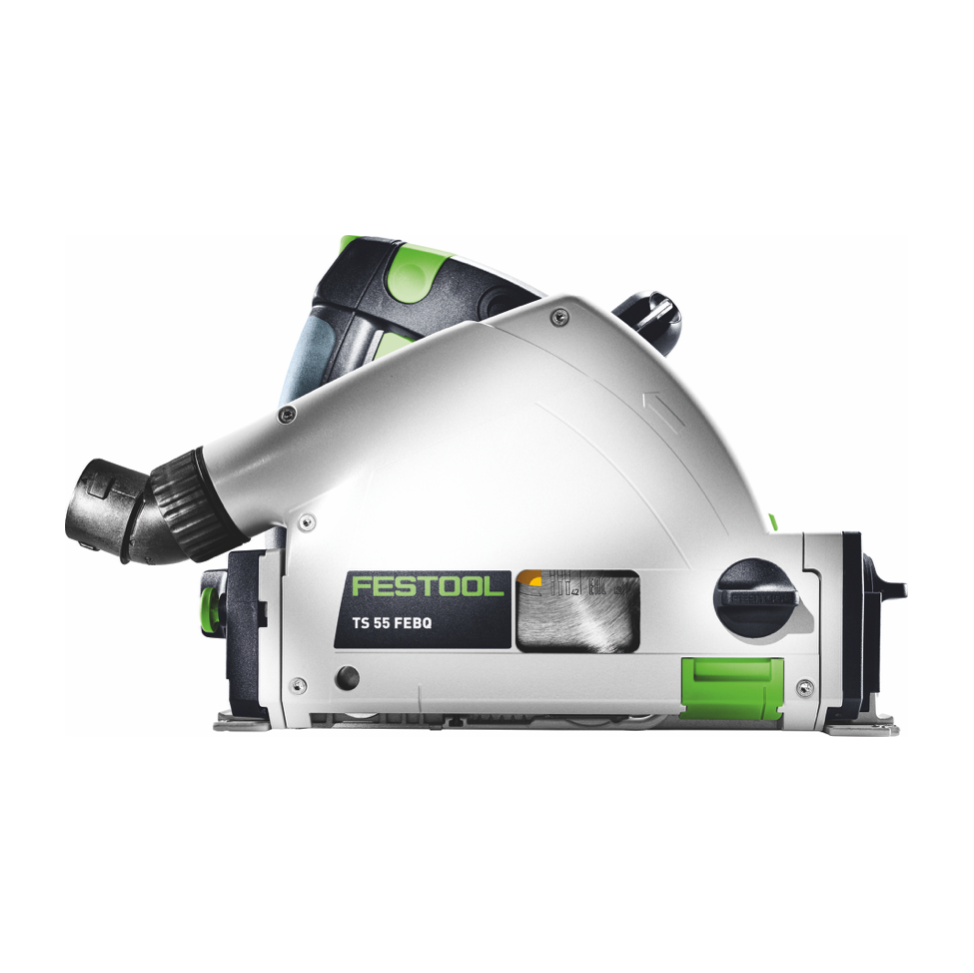

- 1x Festool TS 55 F plunge-cut saw
- 1x Circular saw blade WOOD FINE CUT HW 160x1.8x20 WD42
- 1x splinter guard
- 1x inspection window
- 1x Allen key SW 5

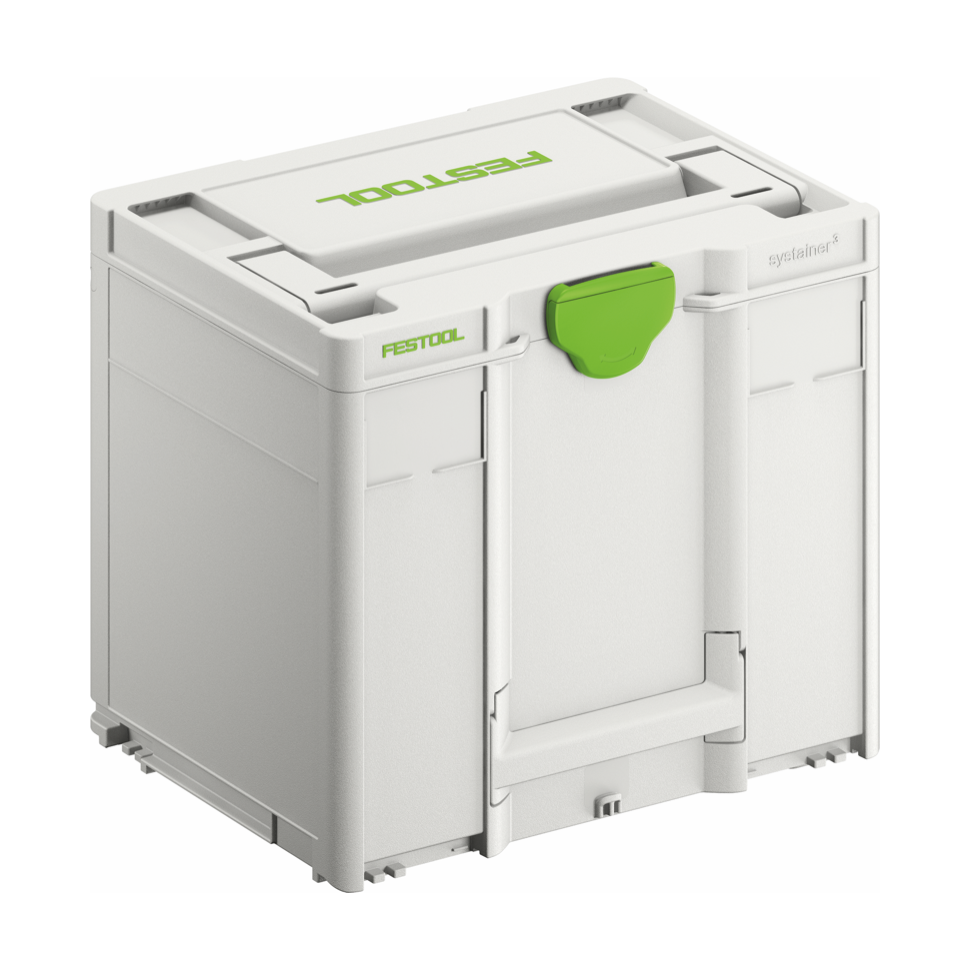

- 1x Festool SYS3 M 337 Systainer

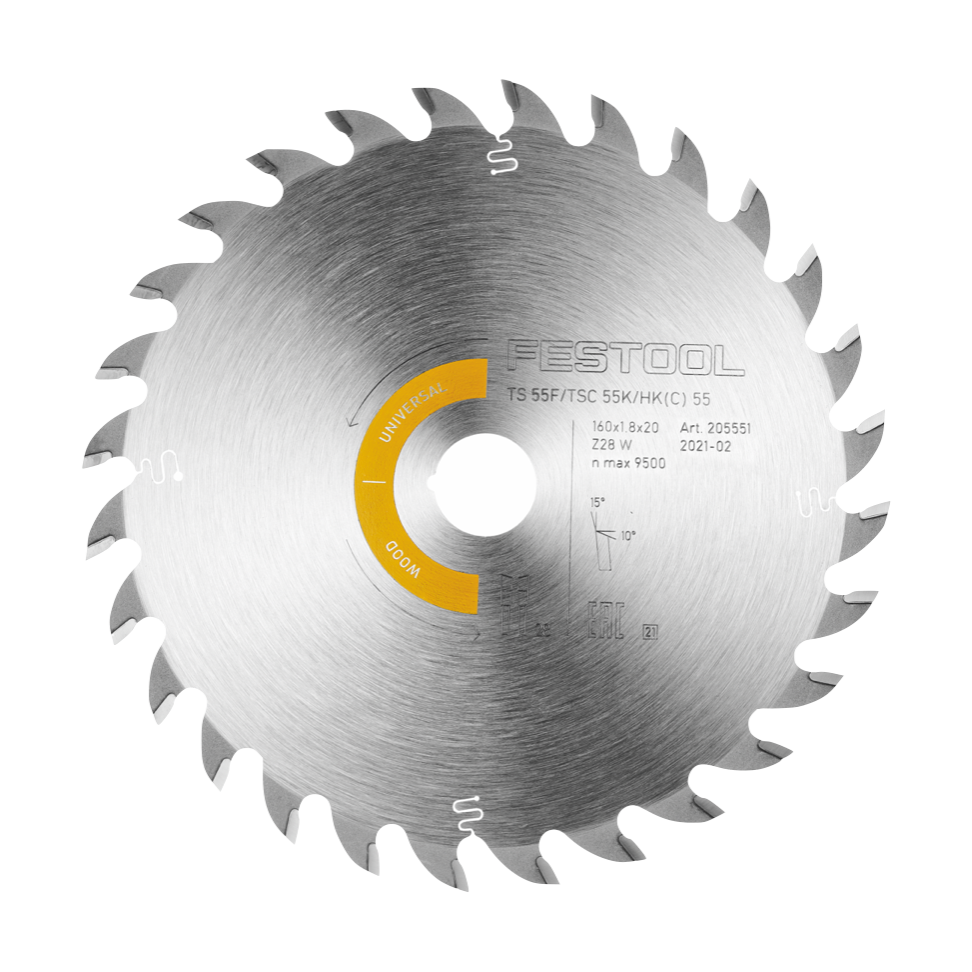

- 1x Festool circular saw blade Wood Universal HW 160x1.8x20 W28

Product Description:
The Festool TS 55 F plunge cut saw is ideal for precise plunge cuts with a material thickness of up to 55 mm and is therefore perfect for cutting interior doors to length, cutting panel material to size, creating expansion joints in parquet floors and shadow gaps as well as sawing and processing gypsum fibreboards. Thanks to the guide wedge, the plunge-cut saw ensures safe working and easy positioning in an existing kerf. With the transparent and adjustable viewing window, you always have a good view of the scribe mark and saw blade. The spring-mounted guide wedge emerges in front of the saw blade, preventing it from jamming and making it easier to reposition it in existing kerfs. The newly installed control electronics enable speed control for temperature monitoring and quick brake, thus ensuring optimum adaptation to the material. Thanks to the FastFix spindle stop, changing the saw blade is very easy. The correct saw blade is fitted in just a few simple steps and the appropriate speed setting is made for material-compatible sawing, guaranteeing material-compatible work at all times. The flat housing offers maximum flexibility when working with an angle setting with undercut function from -1 to 47°. The new SYS3 M 337 Systainer with its tried-and-tested base provides safe and mobile storage for the saw and accessories - now also compatible with the bott vario3 in-vehicle device.

Technical Data:
- Manufacturer: Festool
- Manufacturer's designation: TS 55 FEBQ-Plus
- Manufacturer number: 576703
- Power consumption: 1200 W
- Idle speed: 2000 - 5800 min-1
- Saw blade diameter: 160 mm
- Angle range: -1° - 47°
- Cutting depth at 45°: 0 - 43 mm
- Cutting depth at 90°: 0-55 mm
- Dust extraction connection (diameter): 27 / 36 mm
- Weight (without battery): 4.5 kg
- For commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!

Specifications

• Hersteller: Festool
• Gewicht: 4500 g
• Antrieb: Netzbetrieb
• K-Wert Vibration: 1.5 m/s²
• Leistung: 1200 W
• Max. Leerlaufdrehzahl: 5800 U/min
• Schalldruckpegel: 90 dB
• Max. Vibration: 2.5 m/s²
• K-Wert Geräusch: 3 dB
• Schallleistungspegel: 101 dB
• Max. Sägeblatt-Ø: 160 mm
• Max. Schnitttiefe 90°: 55 mm
• Max. Schnitttiefe 45°: 43 mm
• Anschluss Staubabsaugung-Ø: 27/36 mm
• Gehrung: -1 - 47 °
• Neigungswinkel: -1 - 47 °
