Description

Package contents:

- 1x Festool DF 500 Q Joining Machine
- 1x DOMINO Cutter D 5-NL 20 HW-DF 500 (493490)
- 1x Additional stop ZA-DF 500/700 (495666)
- 1x Trim stop LA-DF 500/700 (493487)
- 1x Cross stop QA-DF 500/700 (498590)
- 1x Open ended spanner SW 8
- 1x Systainer³ case Festool SYS3 M 187 (204842)

Product description:

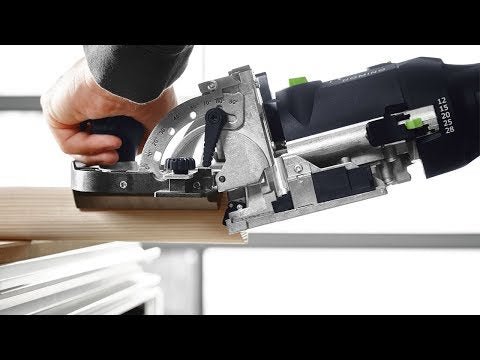

The DF 500 from festool is a highly versatile joining machine suitable for dowels ranging in size from 4 x 20 to 10 x 50 mm. Its patented routing principle, unique to hand-held machines, for accurate work with no kickbacks. It is also equipped with quick, easy-to-adjust stops that guarantee accurate results. This machine also features Domino dowels to ensure perfect assembly stability. Its system accessories compatible with both DOMINO jointers The DF 500 is ideal for assembling furniture, shopfitting and interior design, as well as building windows and exhibition stands. It can also be used to assemble panels, frames and frames. Festool is a manufacturer of top-of-the-range power tools, distinguished above all by its long tradition and excellent manufacturing quality.

Technical specifications:

Manufacturer: Festool
Manufacturer's designation : DF 500 Q-Set
Manufacturer's number : 576420
Power consumption : 420W
No-load rotation speed : 25500 min-¹
Depth stop for routing depth : 12, 15, 20, 25, 28mm
Max. routing depth: 28.00 mm
DOMINO slot cutter diameters: 4, 5, 6, 8, 10mm
Routing height adjustment: 5 - 30mm
Mitre routing: 0 - 90°.
Dust extraction connection diameter: 27mm
Product weight : 3.20kg
Drive type: mains
Routing: Uncertainty (vibration) K: 1.50m/s².
Routing: Uncertainty (noise) K: 3.00dB
Routing: Total vibration average, ah: 3.00m/s².
Routing: Standard series EN: 60745-2-19
Routing: A-weighted sound pressure level Lp: 84.00dB(A)
Routing: A-weighted sound power level Lw: 95.00dB(A)

Specifications

• Hersteller: Festool
• Gewicht: 3200 g
• Antrieb: Netzbetrieb
• K-Wert Vibration: 1.5 m/s²
• Länge: 394 mm
• Breite: 292 mm
• Höhe: 163 mm
• Leistung: 420 W
• Max. Leerlaufdrehzahl: 25500 U/min
• Schalldruckpegel: 84 dB
• Max. Vibration: 3 m/s²
• K-Wert Geräusch: 3 dB
• Schallleistungspegel: 95 dB
• Kabellänge: 4 m
• Max. Fräser-Ø: 10 mm
• Anschluss Staubabsaugung-Ø: 27 mm
• Gehrung: 0 - 90 °
• Max. Frästiefe: 28 mm
• Fräshöhenverstellung: 5 - 30 mm
• Schwingungsemissionswert: 3 m/s²
