Description

Scope of Delivery:

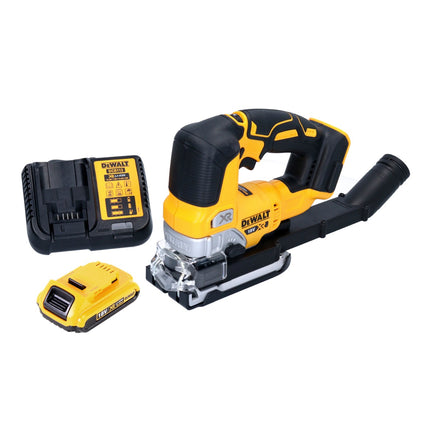

- 1x DeWalt DCS 334 N cordless pendulum action jigsaw
- 1x suction adapter ( Airlock compatible )
- 1x saw shoe protective cover

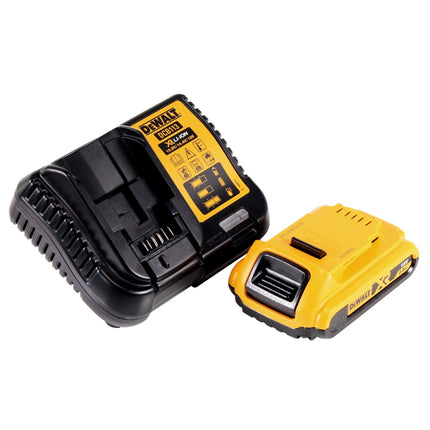

- 1x Dewalt DCB 183 18 V 2.0 Ah Li-Ion battery
- 1x DeWalt DCB 113 charger

Product Description:

With the DCS 334, DeWalt offers a cordless jigsaw with pendulum action. The air-cooled high-performance motor has an electronic, infinitely variable stroke rate control, which enables material-specific work via the finely adjustable throttle switch and the exact stroke rate preselection. The large throttle safety switch has a lock-off function. The brushless motor enables a more compact design and ensures a longer battery life and an increased service life of the machine. DeWalt is a leading manufacturer of power tools of all kinds, characterised above all by its long tradition and high quality workmanship.

Technical Data:

- Manufacturer: DeWalt
- Manufacturer designation: DCS 334
- Idle stroke rate: 0-3200 rpm
- Stroke length: 26 mm
- Tilt adjustment: 0-45 °
- Max. Cutting capacity (wood): 135 mm
- Max. Cutting capacity (steel): 10 mm
- Weight: 2.1 kg
- Triaxial vibration strength (sawing wood): 7 m/s²
- Vibration uncertainty factor K1: 1.5 m/s²
- Triaxial vibration strength (steel): 5.1 m/s²
- Vibration uncertainty factor K2: 1.5 m/s²
- Sound pressure: 84 dB(A)
- Sound pressure uncertainty factor K1: 3 dB(A)
- Sound power: 95 dB(A)
- Sound power uncertainty factor K2: 3 dB(A)
- Hand/arm vibration - sawing wood: 7 m/s²
- Hand/arm vibration: 5.1 m/s²
- For commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!

Specifications

• Hersteller: DeWalt
• Gewicht: 2100 g
• Antrieb: Akku
• Spannung: 18 V
• Akku Kapazität: 2.0 Ah
• K-Wert Vibration: 1.5 m/s²
• Länge: 440 mm
• Breite: 160 mm
• Höhe: 355 mm
• Schalldruckpegel: 84 dB
• Max. Vibration: 7 m/s²
• K-Wert Geräusch: 3 dB
• Schallleistungspegel: 95 dB
• Max. Leerlaufhubzahl: 3200 U/min
• Hubhöhe: 26 mm
• Max. Schnitttiefe Holz: 135 mm
• Max. Schnitttiefe Stahl: 10 mm
• Max. Schnitttiefe Aluminium: 25 mm
• Pendelhub: Ja
• Pendelhubstufen: 4
• Schwingungsemissionswert: 7 m/s²
