Description

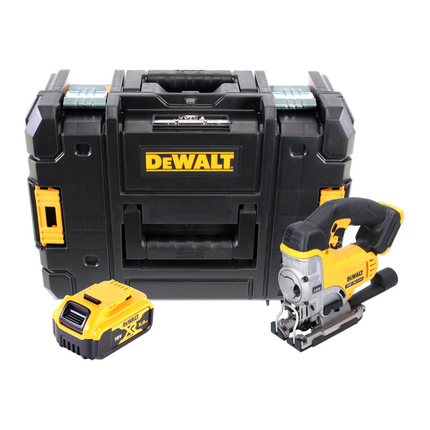

Scope of Delivery:

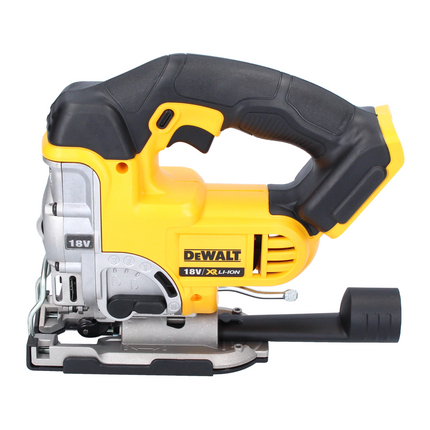

- 1x DeWalt DCS 331 cordless jigsaw
- 1x connection for dust extraction
- 1x saw shoe
- 1x protective cover

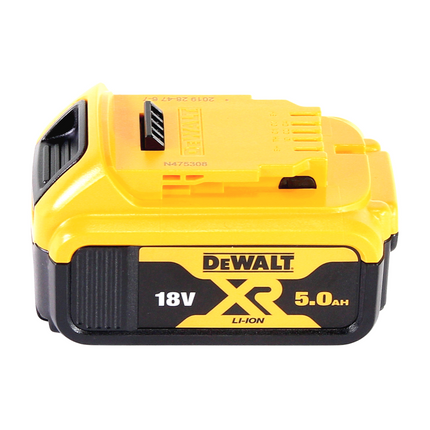

- 1x DeWalt DCB 184 18 V 5.0 Ah battery

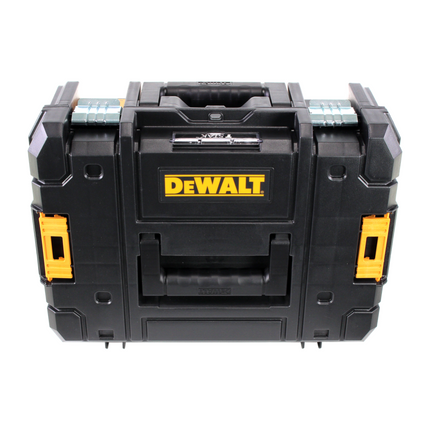

- 1x DeWalt TSTAK tool case
- 1x universal insert
- without charger

Product Description:
The power tool is designed for professional sawing of wood, steel, aluminium, plastic and ceramics at various work sites (i.e. construction sites). The cordless jigsaw with air-cooled high-performance motor is particularly powerful and also has an extremely long service life thanks to the replaceable carbon brushes. The electronic stroke rate control and three-stage pendulum action adjustment ensure optimum cutting performance and rapid, low-damage work progress. In addition, the saw shoe and saw blade can be changed extremely easily and without tools. A counterweight mechanism and an ergonomic rubberised handle ensure safe and fatigue-free working. A chip blowing device ensures a clear view of the workpiece at all times.

Technical Data:
- Manufacturer: DeWalt
- Manufacturer's designation: DCS 331
- Battery voltage 18 V
- Stroke length: 26 mm
- Idle stroke rate: 0 - 3000 min-1
- Tilt angle adjustment: 0 - 45 °
- Cutting depth ( steel ): 10 mm
- Cutting depth ( aluminium ): 25 mm
- Cutting depth ( wood ): 135 mm
- Weight: 2.3 kg
- Sound pressure level: 89 dB (A)
- Sound power level: 100 dB (A)
- Uncertainty (K): 3 dB (A)
- Vibration emission value ( cutting of metal sheets ): 5.5 m/s2
- Uncertainty (K): 1.5 m/s2
- Vibration emission value ( sawing cardboard ): 10.5 m/s2
- Uncertainty (K): 3.0 m/s2
- For commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!

Specifications

• Hersteller: DeWalt
• Gewicht: 2400 g
• Antrieb: Akku
• Spannung: 18 V
• Akku Kapazität: 1.3 -5.0 Ah
• K-Wert Vibration: 3 m/s²
• Länge: 305 mm
• Breite: 90 mm
• Höhe: 215 mm
• Schalldruckpegel: 89 dB
• Max. Vibration: 10.5 m/s²
• K-Wert Geräusch: 3 dB
• Schallleistungspegel: 100 dB
• Max. Leerlaufhubzahl: 3000 U/min
• Hubhöhe: 26 mm
• Max. Schnitttiefe Holz: 135 mm
• Max. Schnitttiefe Stahl: 10 mm
• Max. Schnitttiefe Aluminium: 10 mm
• Pendelhub: Ja
• Pendelhubstufen: 3
• Max. Schnitttiefe NE-Metall: 10 mm
