Scope of Delivery: - 1x cross-cut towing saw KS 120 REB KAPEX - 1x HW universal saw blade W 60 - 1x Angle clamp SM-KS - 1x Workpiece clamp KL-KS 120 - 1x Allen key SW 6 - 1x Operating instructions Product Description: The KS 120 REB is the new version of the successful KS 120 EB. The popular cross-cut towing saw now has a table extension that can be pulled out far for long workpieces and a new angle support. It impresses with its impressive cutting capacity and low weight. Its compact design means that it takes up little space, while its mobility and the fact that it can be used in different locations are a major advantage. Thanks to the special cross-cut position, it can be used to cut ceiling end strips as well as cornice profiles in the original wall position. The integrated special cross-cut position enables cutting depths of up to 120 mm. The double line laser and angle bevelling ensure the most accurate results and error-free angle transfer. The double ball-bearing double column guide and the fine adjustment, which can be operated from the front for millimetre-precise adjustment of the saw blade, allow work to be carried out at the highest level. Thanks to the FastFix function, working with the right material is no problem. The quick brake for planing, sawing and routing ensures maximum safety. Furthermore, the machine is designed for material-compatible work thanks to the process-controlled power electronics " Multi Material Control " ( MMC ) with adjustable and constant speed and temperature monitoring. The CLEANTEC bayonet lock serves as a connecting element between the machine and the suction cup. The KS 120 REB also has a sophisticated anti-static function. Technical Data: - Idle speed: 1 400 - 3 400 min-¹ - Power consumption: 1 600 W - Weight: 23.10 kg - Saw blade Ø: 260.00 mm - Cutting depth 45°/90°: 215 x 88 mm - Cutting depth 90°/90°: 305 x 88 mm - Cutting depth 45°/45° (right): 215 x 35 mm - Crown profile diagonal cut at 45°/90°: 168.00 mm - Tilt angle: 47/47 ° - Dimensions (WxDxH): 713 x 500 x 470 mm - Cutting depth 50°/90° (left): 196 x 88 mm - Cutting depth 60°/90° (right): 152 x 88 mm - Cutting depth 45°/45° (left): 215 x 55 mm - Mitre angle: 50/60° - Special cutting depth 90°/90°: 60 x 120 mm - Special cutting depth 45°/90° (left): 40 x 120 mm - Special cutting depth 45°/90° (right): 20 x 120 mm - Crown profile diagonal cut at 90°/90°: 168.00 mm - Working height: 900.00 mm - Dust extraction connection Ø: 27/36 mmSaws: Uncertainty (vibration) K: 1.50 m/s² - Sawing: A-weighted sound pressure level Lp: 88.00 dB(A) - Sawing: A-weighted sound power level Lw: 101.00 dB(A) - Saws: Total vibration mean value ah: 2.50 m/s² - Saws: EN 60745 series of standards: 61029-2-9 - Saws: Uncertainty (noise) K: 3.00 dB - For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!

Read more less

Scope of Delivery: - 1x Festool universal saw blade W60 260 x 2.5 x 30 mm Product Description: The Festool universal saw blade W60 is perfect for processing all types of wood and wood-based materials. In addition, processing building material boards, gypsum fibre boards and soft plastic is no challenge for the robust saw blade. The toothing and the medium rake angle of -5.00° guarantee excellent cutting results, and both longitudinal and cross cuts are possible without any problems. It is perfectly compatible with the cross-cut saws KS 120 and KS 88, but of course it also fits on other saws if the dimensions match. As usual, the workmanship is of very high quality and promises a long service life. Festool is a premium power tool manufacturer, the high quality standards and the excellently thought-out concepts characterise the company. Technical Data: - Manufacturer: Festool - Manufacturer number: 494604 - Compatible: Mitre saw KS 120 and KS 88 - Diameter: 260 mm - Cutting width: 2.5 mm - Bore Ø: 30 mm - Number of teeth: 60 - Rake angle: -5 ° - Tooth shape: W - For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!

Read more less

Scope of Delivery: - 1x Festool KS 120 cross-cut saw - 1x operating tool - 1x Festool HW universal saw blade W60 - 1x workpiece clamp - 1x angle clamp Product Description: The Festool KS 120 EB mitre saw impresses with its high precision and very compact and lightweight design. The machine is particularly suitable for fitting skirting boards and cover mouldings up to 120 mm, for cutting boards and panels up to 305 x 88 mm to length, for fitting cornice profiles up to 168 mm and for cross-cutting squared timber and beams up to 88 mm thick. Thanks to the front-operated fine adjustment, the Festool KS 120 EB ensures perfect results and millimetre-precise adjustment of the saw blade angle. The built-in laser ensures additional precision and safety when working. The angle bevelling ensures error-free angle transfer and the practical FastFix saw blade change allows you to always work with the right material. Technical Data: - Power consumption: 1,600 watts - Idle speed: 1,400 - 3,400 rpm - Saw blade diameter: 260 mm - Cutting depth 60°/90° right: 152 x 88 mm - Cutting depth 45°/45° right: 215 x 35 mm - Cutting depth 45°/45° left: 215 x 55 mm - Cutting depth 50°/90° left: 196 x 88 mm - Cutting depth 45°/90°: 215 x 88 mm - Cutting depth 90°/90°: 305 x 88 mm - Mitre angle: 50°/60° - Tilt angle: 47°/47° - Dimensions: 713 x 500 x 470 mm - Dust extraction connection: 27 - 36 mm - Weight: 21.5 kg - For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!

Read more less

Widerstandsfähig, präzise und ideal auf die Maschine und das Material abgestimmt: das WOOD FINE CUT Sägeblatt ist der Profi für beschichtete oder furnierte Platten sowie für saubere und ausrissarme Querschnitte in Vollholz. Das unschlagbare Zusammenspiel von Maschine, Sägeblatt und Material ermöglicht den wirklich perfekten Schnitt.Für hochpräzise Ergebnisse bei jedem Kappschnitt.Stärken und Nutzen- Das Feinschnittsägeblatt für saubere und ausrissarme Schnitte- Die Sägezähne sind aus hochwertigem Metall gefertigt und bieten einen gelungenen Sägefortschritt mit perfektem Schnitt- Die Schnittwinkel und Zahnform sind auf die Anwendung und Maschine abgestimmt- Mit der Farbcodierung von Festool ist das richtige Sägeblatt schnell gefunden: die Farbe gelb steht für die Bearbeitung von HolzAnwendungsschwerpunkte- Für saubere und ausrissarme Querschnitte in Vollholz sowie für beschichtete oder furnierte PlattenPassend für- für KS 120, KS 88- das widerstandfähige Kreissägeblatt für sehr gute Schnittleistung bei feinen Quer- und Winkelschnitten, z.B. in Holz und beschichtete PlattenTechnische Daten: Durchmesser 260,00 mm Schnittbreite 2,50 mm Bohrungs-Ø 30,00 mm Zähnezahl 80 Spanwinkel -5,00 ° Zahnform W Bei gewerblicher Nutzung beachten Sie bitte die Bauvorschriften!

Read more less

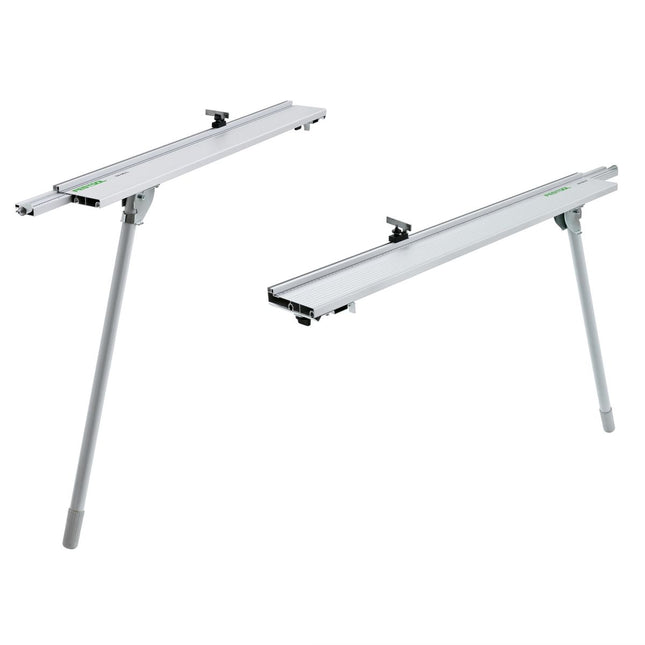

Scope of Delivery: - 1x KA-UG-KS 120-R cross-cut fence - 1x cross-cut fence KA-UG-KS 120-L - 2x measuring scale - 2x telescopic extension with scale - 2x fold-out stand - 1x instruction manual Product Description: The KA-UG-KS 120-R/L cross-cut fence makes using the KAPEX KS 88 / KS 120 considerably easier. In combination with the UG-KAPEX KS 120 base frame, beams and edging timber can be supported without any problems, enabling precise cutting to length of mouldings and profiles. The fold-out stand makes it possible to set up the machine without any further assistance. Thanks to the telescopic extension, a maximum length of 240 cm per side is possible, the length of the extension arm without telescope is 148 cm. A measuring scale is provided for quick and efficient work, and repetitive cuts are no problem thanks to the stop rider. This well-designed accessory saves time and labour. Technical Data: - Weight: 4.60 kg - Boom length (without telescope): 1480.00 mm - Max. Max. length: 2400.00 mm - Length of both stabilisers: 4800 mm - For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!

Read more less

Scope of Delivery: - 2x Festool universal saw blade W60 260 x 2.5 x 30 mm Product Description: The Festool universal saw blade W60 is perfect for processing all types of wood and wood-based materials. In addition, processing building material boards, gypsum fibre boards and soft plastic is no challenge for the robust saw blade. The toothing and the medium rake angle of -5.00° guarantee excellent cutting results, and both longitudinal and cross cuts are possible without any problems. It is perfectly compatible with the cross-cut saws KS 120 and KS 88, but of course it also fits on other saws if the dimensions match. As usual, the workmanship is of very high quality and promises a long service life. Festool is a premium power tool manufacturer, the high quality standards and the excellently thought-out concepts characterise the company. Technical Data: - Manufacturer: Festool - Manufacturer number: 494604 - Compatible: Mitre saw KS 120 and KS 88 - Diameter: 260 mm - Cutting width: 2.5 mm - Bore Ø: 30 mm - Number of teeth: 60 - Rake angle: -5 ° - Tooth shape: W - For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!

Read more less

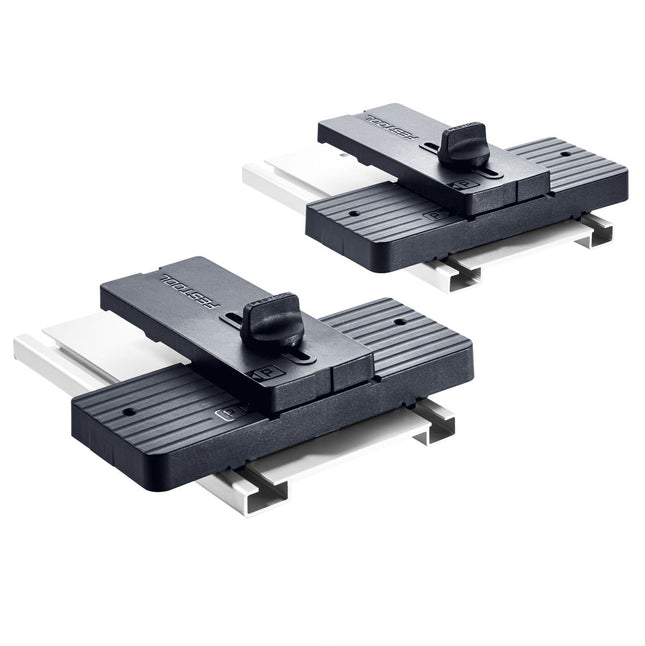

Scope of Delivery: - 2x angle support - 4x mounting screws - 1x instruction manual Product Description: The angular support enables easy cutting of cornice profiles in conjunction with the KA-UG cross-cut fence base frame (not included in the scope of delivery). It also serves as a stop for positioning cornice profiles at an angle. Additional stops or screw clamps can easily be attached in the T-slot. Furthermore, the angle support can also be used as an extension. Technical Data: - assembled (L x W x H ) 23 x 21 x 7.5 cm - Compatible with: KS 120, KS 88 with KA-UG base frame - For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
